EZCodes

In an effort to improve customer service, ASL implemented a feature commonly referred to as EZCodes. EZCodes are a short-hand, simple way of referring to everyday products (usually pipe and fittings) that make them simple to find. Using EZCodes, our wholesale counter staff could quickly key orders for standard fittings without memorizing long, complicated part numbers or searching for them on the computer.

When you search for products like Showroom Fixtures, pumps, heating products, etc., searching with the part ID is the easiest way to find what you are looking for. Most of the time, the part ID is set as the EZ code for these items.

With a little practice, ASL Online users can take advantage of this useful feature to quickly find common products in our on-line catalog.

It is important to note that no two products can share the same EZCode. Additionally, EZCodes may share characters with descriptions of other products. For these reasons, it is crucial to ensure the correct product is selected.

How EZCodes Work

EZCodes are made up of a product's dimensions followed by it's type. For example, the EZCode for a 1/2 Copper 90° Elbow is: 12C90. As you can see the EZCode contains only numbers and letters. All other characters (like the "/" in "1/2") are dropped.

Here are a few common examples:

Product EZCode
1/2" Galvanized 90°12G90
1-1/4" x 1" x 1" Black Tee11411BT
2-1/2 CSA Schedule 40 PVC Pipe212CSA
1/2 Type K Hard Copper Tube12K

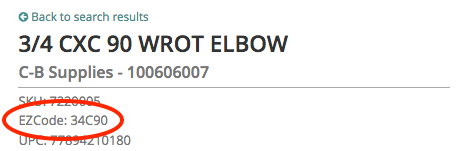

Not all products have EZCodes, but those that do show them on the product's screen:

Reducing Fittings

When trying to find a reducing fitting, you will need to add all sizes to the beginning of the shortcode—followed by the material type—followed by an R for reducing. Lastly, add the fitting type.

Fitting EZCode
2 x 1-1/2 x 1 Copper Red Tee21121CRT
1 x 3/4 Copper Coupling134CRC
3/4 x 1/2 Copper Coupling3412CRC
1 x 3/4 Copper Red 90134CR90

How to read a tee

The diagram below shows a reducing tee. Read the two end sizes first (called the 'run' of the T) with the larger size going first, then the branch of the T last.

Here we show a 2 x 1-1/2 x 1 Reducing Tee.

Examples in different material types:

Black Mall – 21121BRT
Copper – 21121CRT
Schedule 40 – 21121P40RT

Some of the common EZCode fitting types are as follows:

Code Fitting Type
AABS
BBlack Malluable
CCopper Pressure
MJMJ Cast Iron
P40Sch40 PVC
PPProPress
PLPex Crimp Fittings
PPVC DWV
SBSharkbite
ZBrass
